CrownCrete 814 CQ

CrownCrete 814 CQ

CrownCrete 814 CQ is a multi-layer moisture control and decorative colored quartz floor system. The first layer creates a moisture vapor tolerant barrier between the concrete substrate and finished with Crown Polymers system that consists of a self-leveling, three component, cementitious urethane slurry, which is broadcast to rejection with Crown Polymers decorative colored quartz and sealed with a clear epoxy or UV stable topcoat. The system is customizable with an extensive blend palette. Finish options include an integral cove base and variable surface texture to produce a range of slip-resistant finish. The system is typically installed @ nominal 3/16 -1/4’’ (4.7 -6 mm).

system sheet

Description

CrownCrete 814 CQ is a multi-layer moisture control and decorative colored quartz floor system. The first layer creates a moisture vapor tolerant barrier between the concrete substrate and finished with Crown Polymers system that consists of a self-leveling, three component, cementitious urethane slurry, which is broadcast to rejection with Crown Polymers decorative colored quartz and sealed with a clear epoxy or UV stable topcoat. The system is customizable with an extensive blend palette. Finish options include an integral cove base and variable surface texture to produce a range of slip-resistant finish. The system is typically installed @ nominal 3/16 -1/4’’ (4.7 -6 mm).

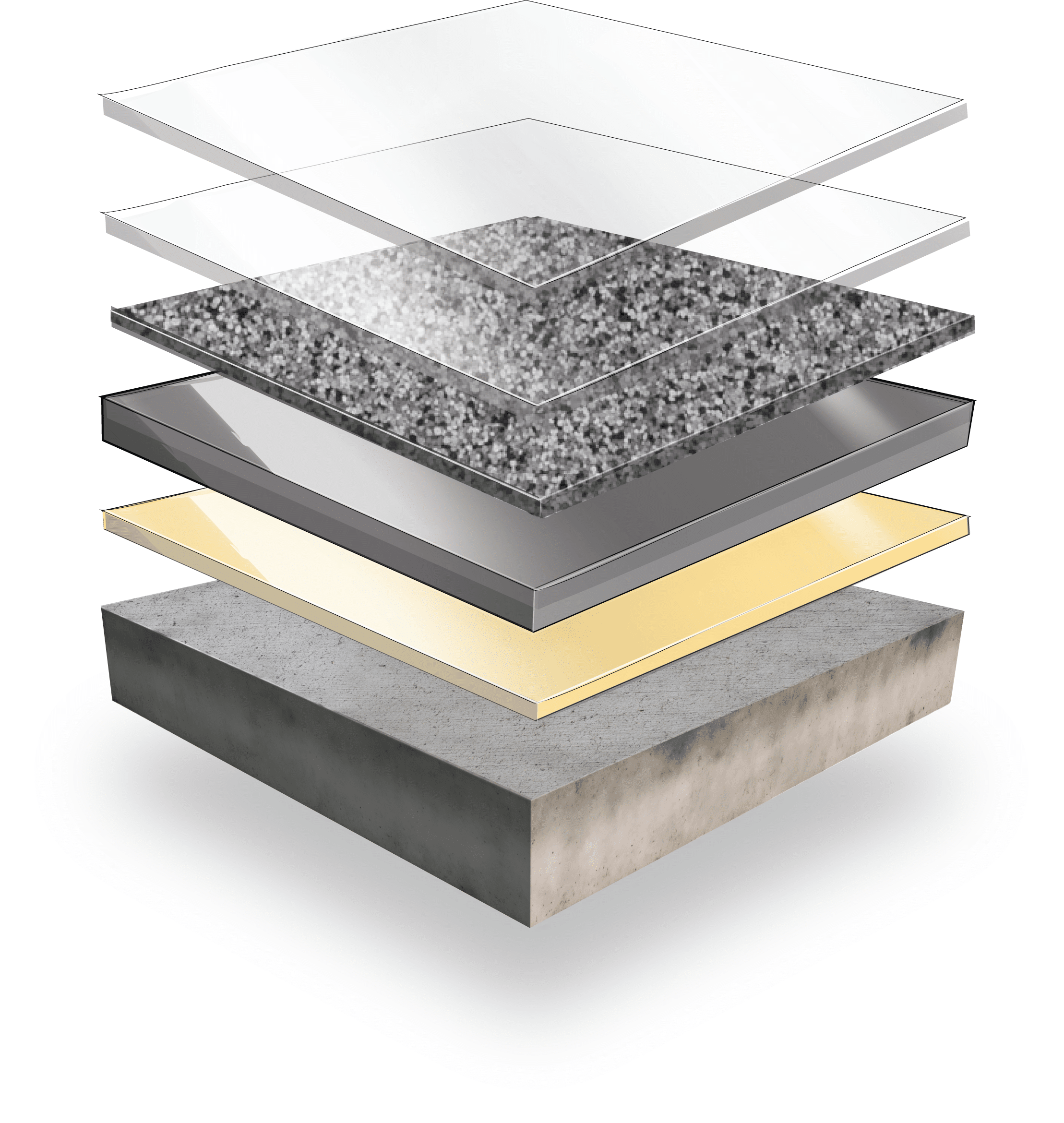

System Build

  1. Primer

    810 CrownCrete Skim Coat (if necessary)

  2. Basecoat

    814 CrownCrete U 1/4″

  3. Broadcast Coat

    Colored Quartz Broadcast

  4. Grout Coat

    8320 or 8318 CrownShield™ Clear Epoxy

  5. Topcoat

    8320 CrownShield™ Clear Epoxy

Typical Uses

Animal Holding and Housing Floors

Automotive Maintenance Floors

Commercial Bakeries and Kitchen Floors

Food and Beverage Processing Floors

Hospital and Health Care Facility Floors

Laboratories and Research Floors

Light and Medium Manufacturing Floors

Meat, Poultry, and Fish Processing Floors

Pharmaceutical and Vivarium Floors

School and University Floors

Benefits

  • Can be applied over 7-10 day partially cured concrete substrates.
  • Can be applied to concrete substrates where <99% relative humidity is measured as per ASTM F2170.
  • Substrate has tensile bond strength in excess of 218 psi.
  • Resists a very wide range of organic and inorganic acids, alkalis, amines, salts, and solvents.
  • Similar coefficient of thermal expansion to concrete allowing movement with the substrate through normal thermal cycling.
  • It will perform and retain its physical characteristic through a wide temperature range from -40° F (-40° C) up to 248° F (120° C).
  • High abrasion qualities result from its aggregate structure.
  • Minimal maintenance costs, superior life cycle cost advantage versus tile.
  • Meets the requirements of USDA for use in food plants
