CrownTrowel Quartz

CrownTrowel Quartz is a standard epoxy trowel quartz system—resin rich and aggregate filled—offering high density, compressive strength, and excellent chemical, abrasion, and impact resistance in a seamless floor. It’s customizable for decor and slip resistance, with finish options including standard or unlimited custom colors, slight or heavy orange peel, integral cove base, and variable texture, typically installed at 187–250 mils (4.7–6.4 mm).

system sheet

Description

CrownTrowel Quartz is a standard epoxy trowel quartz system—resin rich and aggregate filled—offering high density, compressive strength, and excellent chemical, abrasion, and impact resistance in a seamless floor. It’s customizable for decor and slip resistance, with finish options including standard or unlimited custom colors, slight or heavy orange peel, integral cove base, and variable texture, typically installed at 187–250 mils (4.7–6.4 mm).

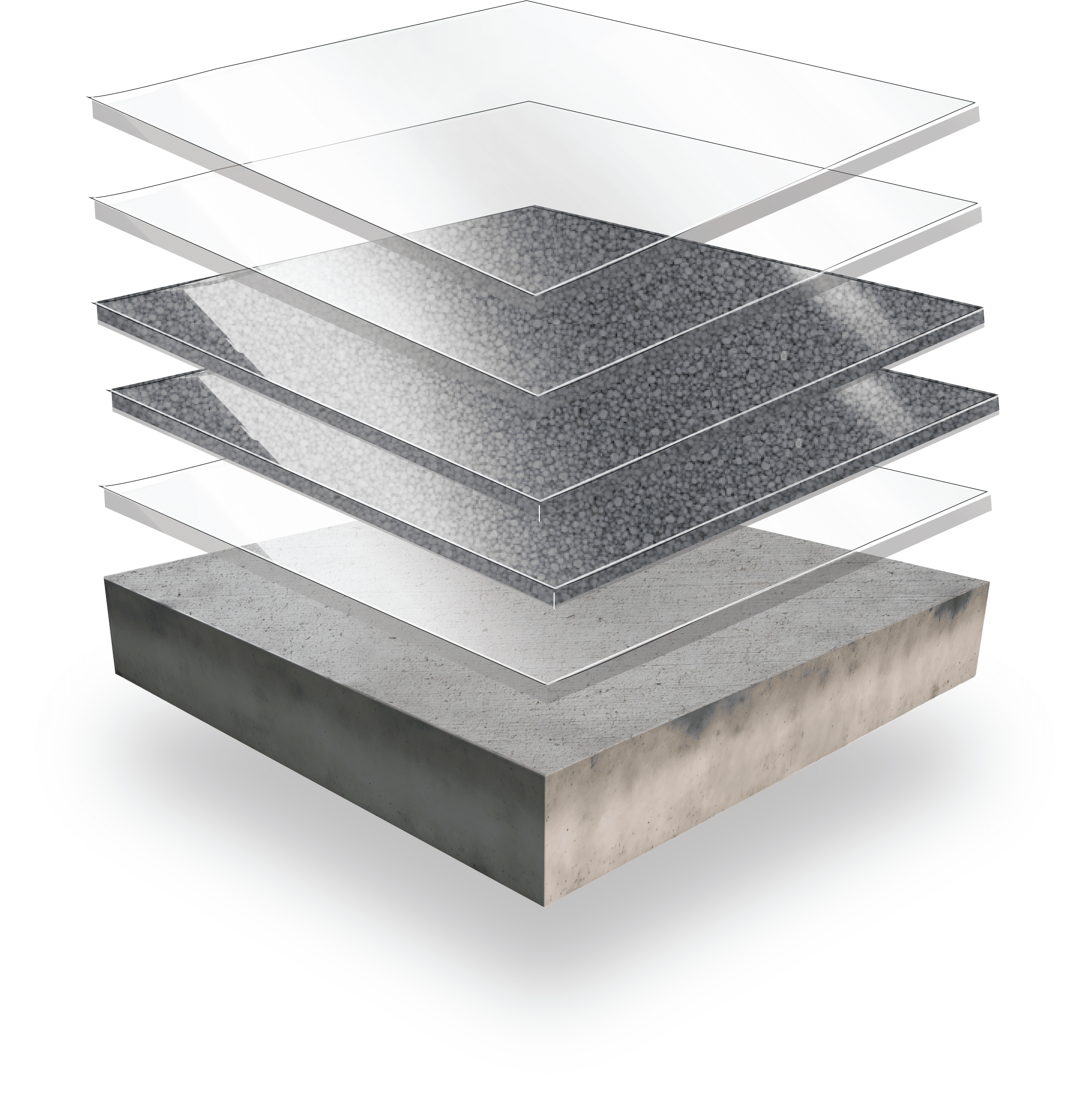

System Build

  1. Primer

    8303 CrownShield™ MVB (if necessary)

  2. Basecoat

    8318 CrownShield™ Epoxy w/ Colored Quartz

  3. Grout Coat

    8312 CrownGrout

  4. Build Coat

    8318 CrownShield™ Clear Epoxy

  5. Topcoat

    8100 CrownCote HP Polyurethane

Typical Uses

Break Rooms and Cafeterias

Pharmaceutical Plants

Laboratories

Hospitals and Health Care Facilities

Educational Facilities

Locker Rooms

Prisons / Correctional Facilities

Stadiums

Benefits

  • Lower maintenance and life cycle cost vs. other flooring options
  • Tough, durable, and seamless floor
  • Customizable to complement any decor
  • Very low VOC
  • A wide range of textures and finishes available
  • Optional integral cove, base, and curbs available
  • Crack-bridging and waterproofing membrane options
