ESD Conductive System

Description

CrownCoat flooring system is placed at a nominal 28 mils and meets the Unified Facilities Guide Specification 09 67 23.15 requirements for a three-step aircraft hangar flooring system. It is comprised of a primer, body coat and finish coat, with or without optional sprinkling of skid resistant aluminum oxide aggregate. It can be applied directly over Crown Polymers moisture mitigation primer 8303 CrownShield when it is required. It is in compliance with SCAQMD air quality standards for Industrial Use Only.

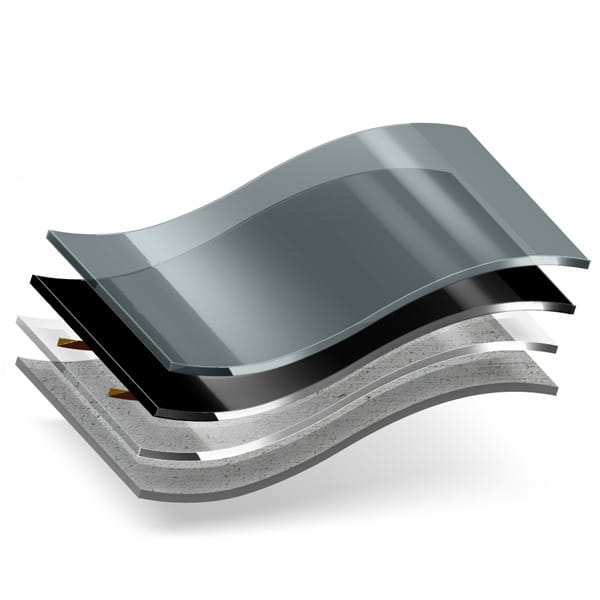

System Build

1. Substrate


   Prepared Concrete

2. Primer


   320 CrownShield Insulation Primer

3. Conductive Strip


   Conductive Copper Strip

4. Conductive Primer Coat


   8601 Conductive Primer

5. Build Coat


   8602 StaticShield Build Coat

6. Seal Coat


   8603 StaticShield Seal Coat

7. Topcoat


   8603 StaticShield Topcoat

Typical Uses

Aerospace & Avionics

Automotive Maintenance & Repair

Bio Technology & Research

Computer & Data Housing

EV Battery Production

Chemical Processing & Storage

Flammable & Explosive Areas

Medical Equipment

Semi-Conductor Production

Benefits

• Complies with USDA, FDA, FSMA. See Crown Polymers Technical Bulletin: 3 Food and Beverage Compliance.
• Slip Resistance (ADA) See Crown Polymers Technical Bulletin: 4 Coefficient of Friction.
• LEED requirements. See Crown Polymers Technical Bulletin: 5 LEED information
• Cures to an inert finish. See Crown Polymers Technical Bulletin: 2 VOC Compliance
